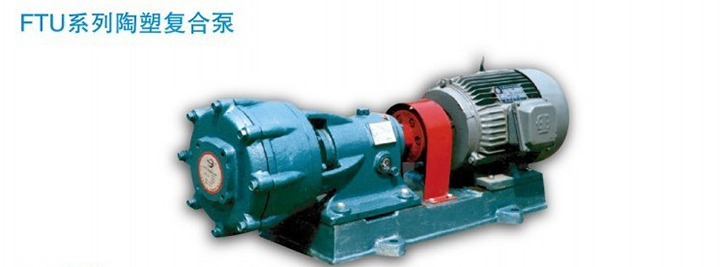

FTU ceramic plastic composite pump

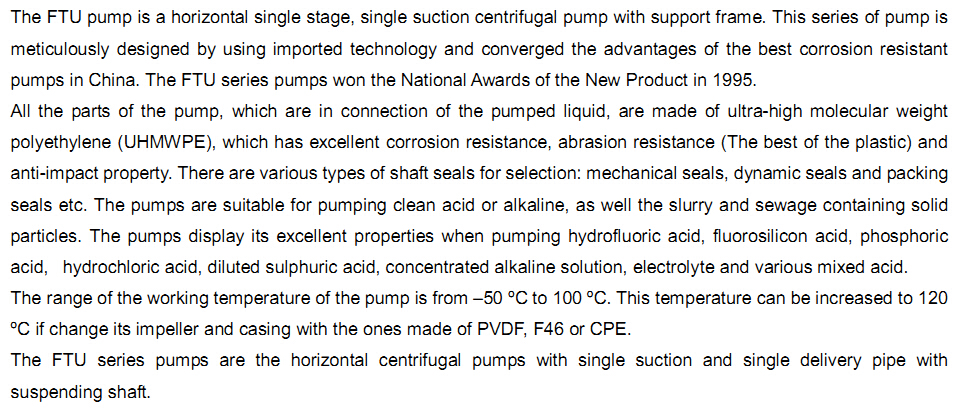

I. General introduction

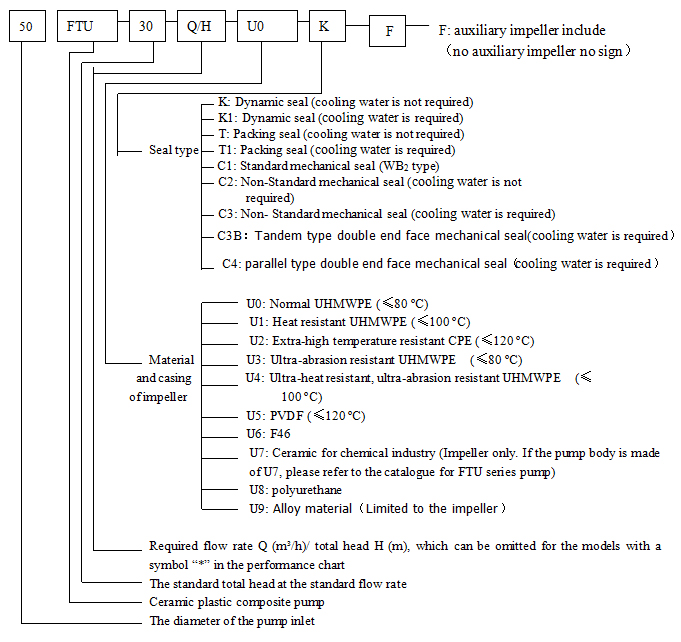

II. Demonstration of model

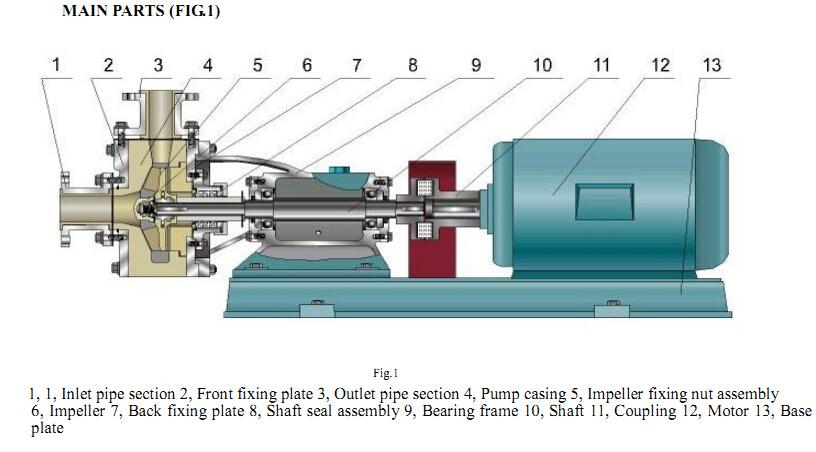

Performance curve Performance parameters Structure description Overall size and mounting size of the pump

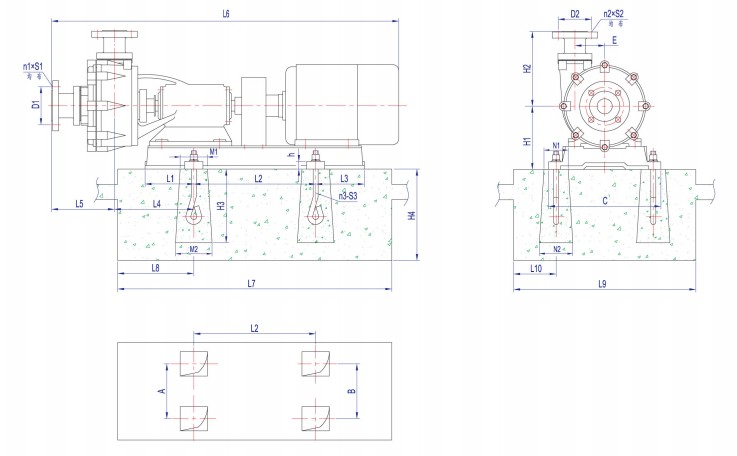

1. View from inlet of pump, outlet is on the left of pump center: 32FTU-15, 32FTU-20, 40FTU-50, 50FTU-30, 65FTU-54, 80FTU-30, 100FTU-40, 100FTU-48;

Mo del	Overall dimensions and installation dimension (mm)																														Weigh - t(Kg)
	h	n3 - S3	A	B	C	E	H1	H2	L1	L2	L3	L4		L5	L6		D1	n1 × S1	D2	n2× S2	M1	M2	N1	N2	H3	L7	L8	L9	L10	H4
	h	n3 - S3	A	B	C	E	H1	H2	L1	L2	L3	With - out ass -ocia - ted impe - ller	With ass -ocia - ted impe - ller	L5	With -out asso -ciat -ed impe -ller	With asso - cia -ted impe - ller	D1	n1 × S1	D2	n2× S2	M1	M2	N1	N2	H3	L7	L8	L9	L10	H4
32 FTU -15	20	4- M 16 × 300	260	260	30 0	74	165	187	83	336	71	19 6.5	/	171	820	/	100	4 × φ 18	85	4× φ14	90	120	80	110	380	70 0	182	500	120	450	68
32 FTU -20	20	4- M 16 × 300	260	260	30 0	81	165	192	97	336	97	19 8	22 6	201	90 3	11 29	100	4 × φ 18	85	4× φ14	90	120	80	110	380	70 0	182	500	120	450	76
40 FTU -50	25	4- M 16 × 400	380	380	44 0	12 2.5	248	290	190	480	19 3	31 5.5	/	220	13 28	/	110	4 × φ 18	100	4× φ18	90	120	80	110	480	11 00	310	700	160	550	260
50 FTU -30	25	4- M 16 × 300	320	320	37 0	98	208	247	160	400	16 0	26 0	30 2	207	11 40	11 82	125	4 × φ 18	110	4× φ18	90	120	80	110	380	90 0	250	600	140	450	157
65 FTU -54	28	4- M16 × 400	330	420	47 0	12 6	310	347	184	620	21 6	33 5	33 5	275	15 10	15 10	145	4 × φ 18	125	4× φ18	90	120	80	110	480	12 50	300	700	140	550	338
80 FTU -30	30	4- M 16 × 400	450	450	53 0	11 0	290	327	195	482	19 5	31 8	34 5	272	13 82	14 09	160	8 × φ 18	145	4× φ18	90	120	80	110	480	11 00	309	750	150	550	298
100 FTU -40	30	4- M 20 × 400	385	480	54 0	13 6	335	332	200	660	24 6	33 4	38 2.5	297	16 87	173 5.5	180	8 × φ 18	160	8× φ18	120	150	100	130	470	13 00	300	850	185	600	481
100 FTU -48	30	4- M 20 × 400	385	510	57 0	23 1	335	425	200	660	31 4	/	41 3	298	/	18 12	180	8 × φ 18	160	8× φ18	120	150	100	130	470	13 50	300	900	195	600	700

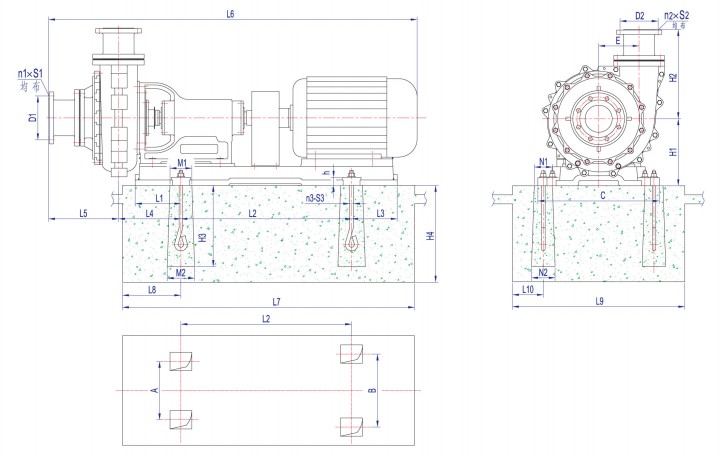

2. View from inlet of pump, outlet is on the right of pump center: 100FTU-35, 150FTU-42, 150FTU-26, 150FTU-48;

Mo del	Overall dimensions and installation dimension (mm)																														Weigh - t(Kg)
	h	n3 - S3	A	B	C	E	H1	H2	L1	L2	L3	L4		L5	L6		D1	n1 × S1	D2	n2× S2	M1	M2	N1	N2	H3	L7	L8	L9	L10	H4
	h	n3 - S3	A	B	C	E	H1	H2	L1	L2	L3	With - out ass -ocia - ted impe - ller	With asso -cia -ted impe - ller	L5	With - out ass -ocia - ted impe - ller	With asso -cia -ted impe - lle	D1	n1 × S1	D2	n2× S2	M1	M2	N1	N2	H3	L7	L8	L9	L10	H4
100 FTU -35	35	4- M20 × 400	460	46 0	52 0	12 6	335	332	161	680	166	295	33 8.5	300	15 45	158 8.5	180	8 × φ 18	160	8× φ18	120	150	100	130	470	12 00	260	800	170	600	408
150 FTU -42	45	4- M20 × 500	510	61 0	67 0	22 3	370	492	250	935	250	342	38 3	383	20 15	20 56	240	8 × φ 22	210	8× φ18	120	150	100	130	560	16 00	320	950	170	700	890
150 FTU -26	40	4- M20 × 500	420	53 6	59 6	19 0	325	452	233	700	307	324	36 5	364	18 64	19 05	240	8 × φ 22	210	8× φ18	120	150	100	130	560	14 50	350	900	182	700	640
150 FTU -48	45	4- M20 × 500	510	61 0	67 0	22 3	400	492	212	935	345	/	38 2.5	383	/	224 0.5	240	8 × φ 22	210	8× φ18	120	150	100	130	560	17 00	320	950	170	700	950

【 back 】【 order 】

	•	FUH engineering plastic horizontal pump
	•	FDU engineering plastic low-speed slurry pump
	•	FLU engineering plastic filter pump
	•	FCU engineering plastic side suction pump
	•	FTU ceramic plastic composite pump
	•	FYUB engineering plastic cantilever type submerged pump
	•	FYUC engineering plastic low-speed cantilever slurry submerg
	•	FZU engineering plastic vertical self-priming pump
	•	FRU hose pump
	•	FGU engineering plastic pipeline pump
	•	FQU engineering plastic pump
	•	FPZJ water jet vacuum unit

Company:	Yixing Linggu Plastic Equipment Co., Ltd.
ADD:	Yixing porcelain DingShu Zhen Tong Li Industrial Park Road on the 1st
Zipcode:	214222
Contact:	Chen bosheng
Tel:	+86-510-87409633,87403572,87403345
Fax:	+86-510-87426968
E-mail:	pump-cbs@pub.wx.jsinfo.net
website:	http://www.wury8.com/
Shopsales:	http://yxlgby.1688.com

Home| About| Product| Honor| Style| Online| Contact| 中文版

Model	*Inletoutlet**	Quantity of flowm3/h	Quantity of flow m3/h	Head of delivery m	Head of delivery m	Click
32FTU-15	32×25	2	1~6	15	17~7	Details
32FTU-20	32×25	10	2.5~14	20	25~3	Details
40FTU-50	40×32	12	3~20	50	64~6	Details
50FTU-30	50×40	20	2.5~30	30	33~4	Details
65FTU-54	65×65	30	10~70	54	68~3	Details
80FTU-30	80×65	40	10~60	30	37~4	Details
100FTU-35	100×80	60	20~100	35	39~3	Details
100FTU-40	100×80	100	30~130	40	54~4	Details
100FTU-48	100×80	120	47.5~140	48	57~6	Details
150FTU-42	150×125	150	65~250	42	44~9.5	Details
150FTU-26	150×125	220	100~320	26	29~3.5	Details
150FTU-48	150×125	250	100~300	48	56~14	Details
