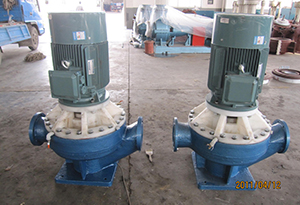

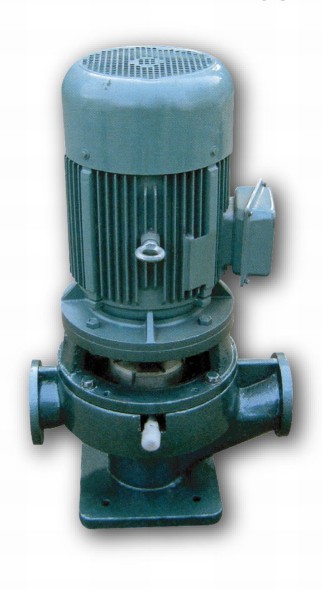

FGU engineering plastic pipeline pump

I. General introduction

The FGU engineering plastic pipeline pump is vertical,single-stage,single-suction,centrifugal pump. All the parts of the pump, which are in connection of the pumped liquid, are made of ultra-high molecular weight polyethylene (UHMWPE), which has excellent corrosion resistance, abrasion resistance (The best of the plastic) and anti-impact property. This series of pump can transport clean liquid and the corrosive medium containing a small amount of solid particles. The main features of the pumps are:
1.With the vertical integrated structure, the pump occupies very small space and needs a small foundation. If an outside-door type motor is equipped, this type of the pumps can be used outside-door without pump house. So the cost of construction can be saved.
2.Simple for installation because the pump is installed on the piping just likes a valve.
3.The pump is fixed on the motor shaft. There is no alignment problem for the pump. Operate smoothly with low noise and vibration level.
His type of the pumps is suitable for chemical industry, metallurgical industry, chemical fiber industry, titanium dioxide industry, rare earth industry, insecticide industry, paper industry, light industry, water treatment, environment facilities and fire fighting. The allowable working temperature of the pump is within -50 ºC to 80 ºC. This temperature can be increase to 120 ºC if the impeller and casing re made of PVDF or F46.

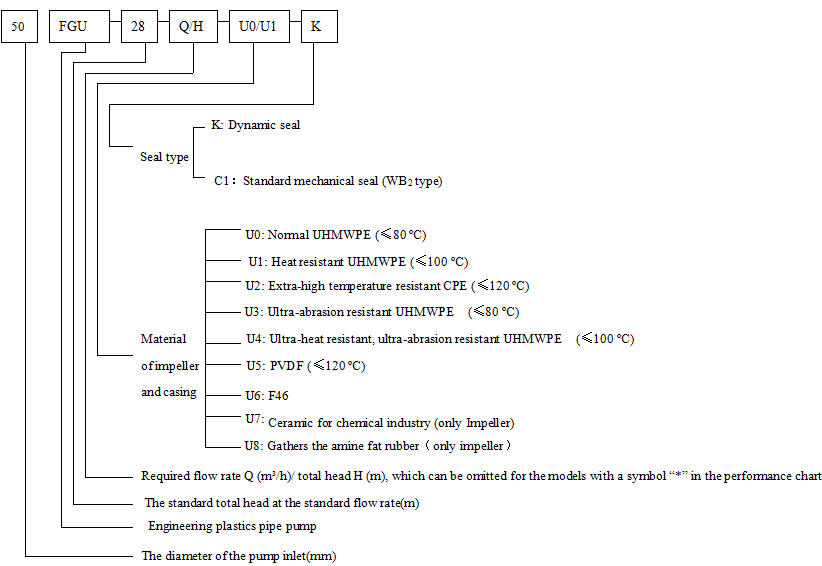

II. Demonstration of model

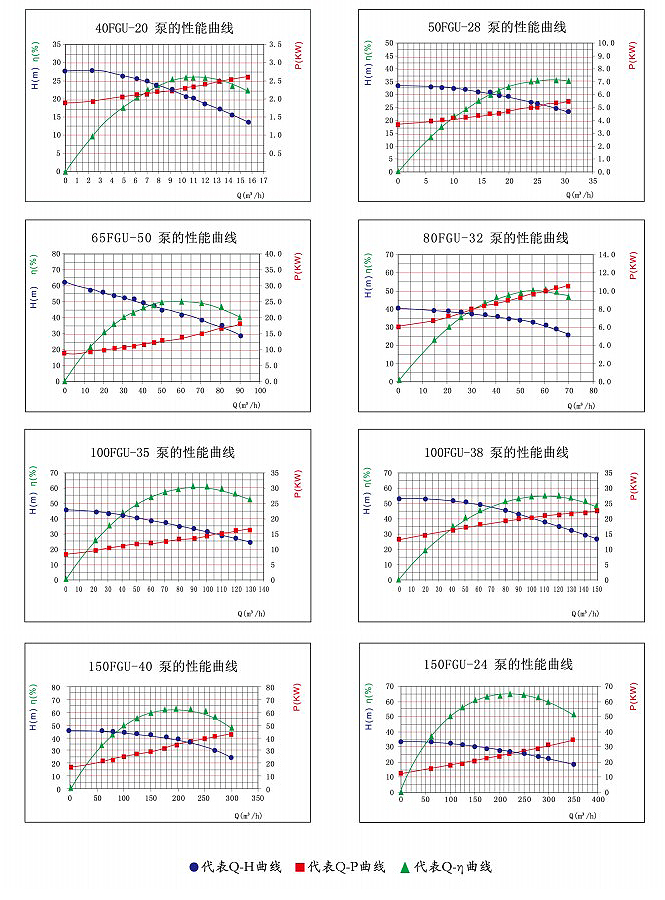

Performance curve Performance parameters Structure description Overall size and mounting size of the pump

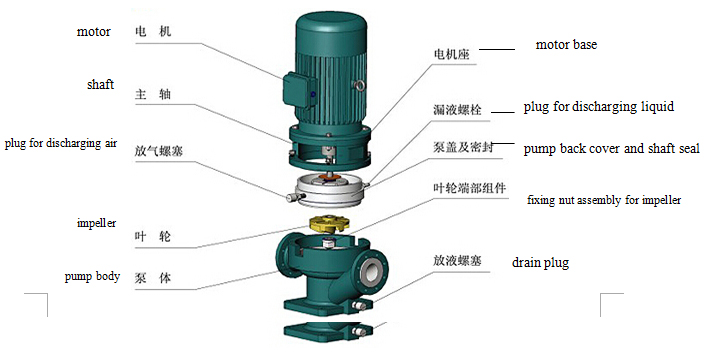

(I) Main parts

(II) Seal structure

1. K type dynamic seal:

This is a dynamic seal introduced from Ren yuan company in Japan. It is composed of expeller on the back of impeller and rubber seal rings. When the pump is in operation, the centrifugal force, which is created by the expeller, maintains a negative pressure in the stuffing box, so there is no any leakage. At same time, the lips of the rubber seals is not touching the sleeve, so there is no any erosion between the rubber seals and sleeve. When the pump is stopped, the pressure in the stuffing box becomes positive. It presses the lips of the rubber seals touching the sleeve closely, so the gap between the rubber seals and sleeve is sealed up. It’s mainly suitable for conveying clean liquid and slurry containing a small amount of solid particles, wastewater containing impurities and other corrosive medium.
1.Back blade of impeller 2. Impeller mattress 3. Shaft sleeve 4. Shaft sleeve with key 5. Oil seal 6. Gland 7. Shaft sleeve bed8. Acid retaining ring

2. C1 type mechanical seal:

This mechanical seal is WB2 type mechanical seal. It is a standard internal mechanical seal with multi-springs and Teflon bellow. Cooling water is not reqired. Its seal rings are made of engineering ceramic and Teflon. This type of seal has simple structure, good interchangeability and easy to install. It is suitable for pumping clean liquids and non-crystallizable liquids. It also can be used for pumping liquids containing hard particles if both the ceramic static seat and ceramic rotating ring are selected.
1.Back blade of impeller 2. Impeller mattress 3. Shaft sleeve 4. Static ring bed 5. Static ring 6. Gland 7. Rotating ring components 8. Shaft sleeve with key 9. Shaft sleeve bed 10. Round nut

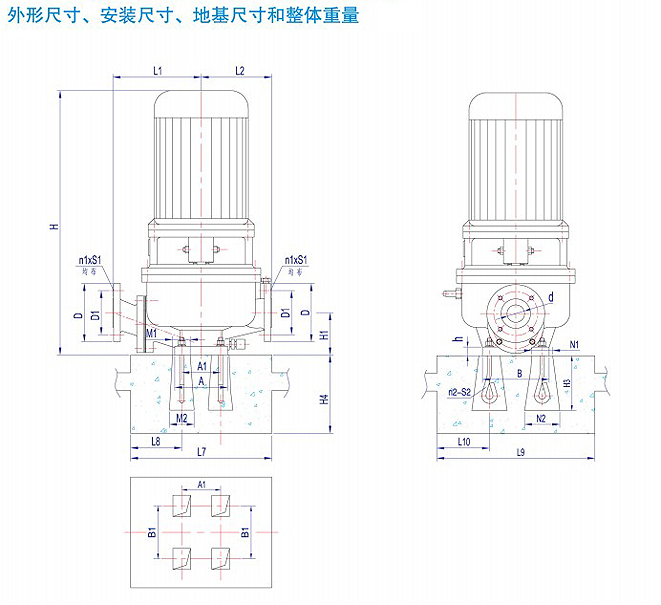

Model	Overall dimensions, installation dimension and foundation dimension (mm)																								Weig - ht kg
Model	d	D	D1	n1×S1	A	A1	B	B1	n2-S2	L1	L2	H1	H	h	H3	H4	M1	M2	N1	N2	L7	L8	L9	L10	Weig - ht kg
40FGU-20	40	150	110	4×M16	160	120	180	140	4-M12×220	200	175	140	615	25	250	300	50	70	60	100	420	150	450	155	75
50FGU-28	50	165	125	4×M16	190	140	230	180	4-M12×220	250	200	120	749	25	250	300	50	70	60	100	450	155	500	160	144
65FGU-50	65	185	145	4×M16	260	200	310	250	4-M16×300	300	250	200	947	30	330	400	80	110	90	120	550	175	600	175	202
80FGU-32	80	200	160	8×M16	260	200	310	250	4-M16×300	270	230	200	948	30	330	400	80	110	90	120	550	175	650	175	190
100FGU-35	100	220	180	8×M16	260	200	300	240	4-M20×400	335	275	220	1039	30	430	500	100	130	120	150	600	200	650	205	279
100FGU-38	100	220	180	8×M16	360	200	360	280	4-M20×400	335	280	250	1206	35	430	500	100	130	120	130	680	200	680	200	386
150FGU-40	150	285	240	8×M20	550	420	500	420	4-M20×400	450	415	380	1394	40	430	500	100	130	120	150	900	275	900	275	633
150FGU-24	150	285	240	8×M20	470	360	490	400	4-M20×400	463	440	360	1372	40	430	500	100	130	120	150	900	270	900	250	642
